800-1400ppm, friendly-environmental, HMI, Sanitary Napkin Counting Machine
Description:
1. High Efficient. The machine adopts an automatic counting function. Not only it speeds up to 1200ppm but also improves the packaging efficiency.
2. Optional storage parameters. HMI operation is easy for workers to master and use it. There is no complex operation. The data of films based on different specifications can be stored as parameter after testing them.
3. Convenient replacement. According to the parameter, just click a one-button switch to change between different hygiene products. It has a stainless-steel operating platform for counting more accurately.
4. Small size, the counting machine is occupied in a small area. It can be applied in a boxing machine and packing machine to organize pads.
Specification:
| Item: | QK-1200 |
| Machine: | Sanitary pads counting machine |
| Speed: | 1400ppm (Pantyliner) 800ppm (Sanitary pad) |
| Products range: | 10-30pcs |
| Size: | L(4100)*W(1200)*H(1600)mm |
| Weight: | About 800kg |
| Power supply: | 3 Phase, 380V+N+PE,±5%, 50HZ |
| Capacity: | 5KW |
| Air Consumption: | 0.5m³/min |
| Pneumatic: | 0.6Mpa |
Applications:
Suitable for different specifications of sanitary napkins and pantyliner
Our service process :
①Design machine layout according to customer's demands;
②Confirm on the products quality and technology standard;
③Sign the sales service contract;
④Manufacture the product according to the quality standard;
⑤Responsible for installation, testing, and training;
⑥Set up client track tablet, train your workers in maintenance regularly;
⑦Follow up the product quality information feedback and improve continuously.
Packaging & Shipping:
1. Size: According to the sanitary napkin packing machine actual size.
2. Weight: About 1T.

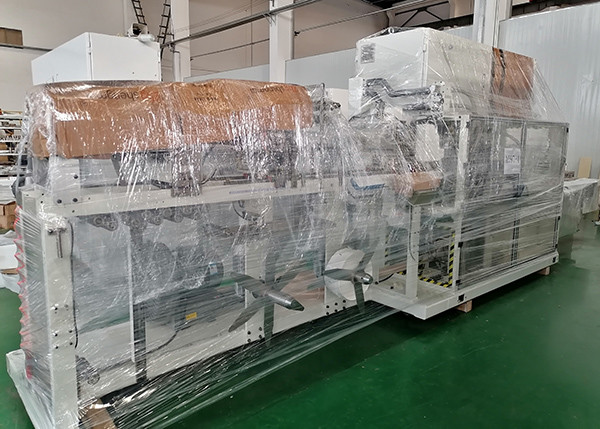

3. Packaging Details: Standard package is a wooden carton(Machine Size: L*W*H). Strong PE film wrapping outside of each section, then packing each section by the wooden carton.
4. Shipping: By sea.
